Harman AudioworX - Release Notes

  1. Release Identification
  2. New Harman AudioworX Features
  3. General Limitations
  4. Known Issues
  5. FAQ
  6. Compatibility/Sub-Versioning

GTT Features

The table below details the feature updates for Global Tuning Tool (GTT).

Features Updates
 Sound Field Control

(Measurement with Mannequin)

 The seat measurements can be performed using a mannequin equipped with two microphones placed in the left and right ears.
The process to define a mannequin measurement is the same as that for other microphone arrays, with a few additional steps required to specify movement or rotation details for each sequence. Measured mannequin measurements can be analyzed in the central viewer.
For more details, refer to Mannequin Measurement.
Preset Controller Enhancements & Custom Actions
  • Extend the maximum number of slots to more than 255.

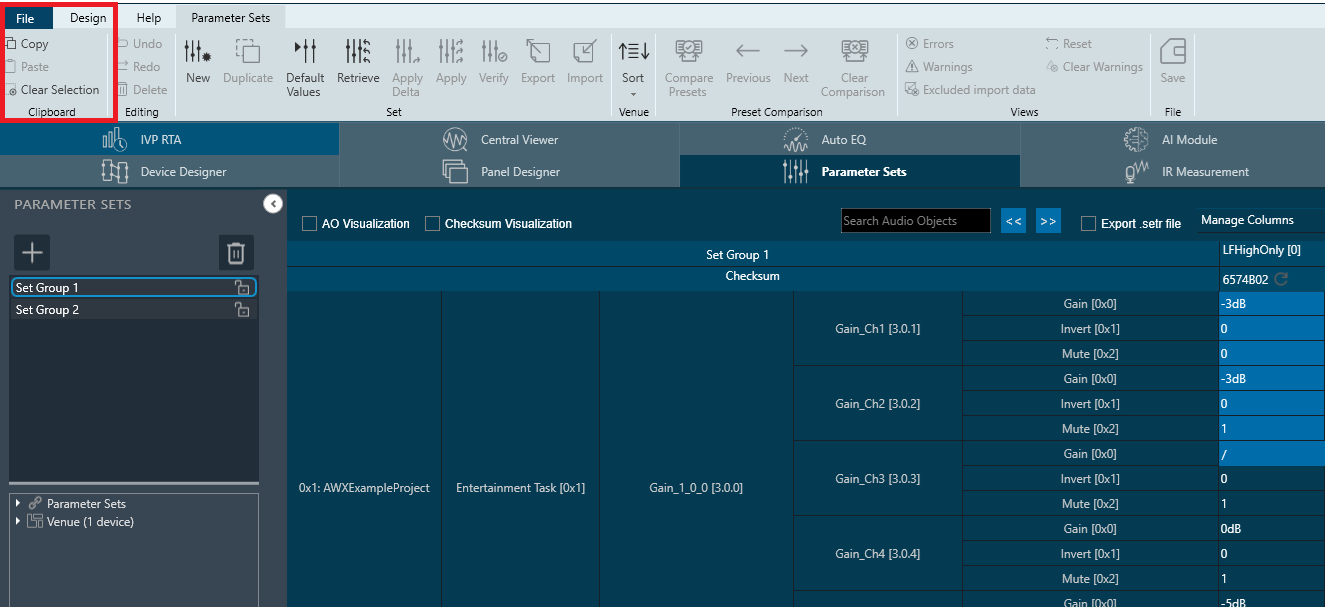

  • Provided Parameter sets copy and paste option to copy/paste set values from one parameter set to a different or the same set. Both single and multiple selections are supported using keyboard shortcuts using the shift key control key, CTRL+C, CTRL+V.
  • Ability to detect auto corrected or invalid values for the Parameter set while importing set/setr
    • Highlight objects if the respective data is not imported.
    • Option to filter preset data to view cells with warnings and errors.

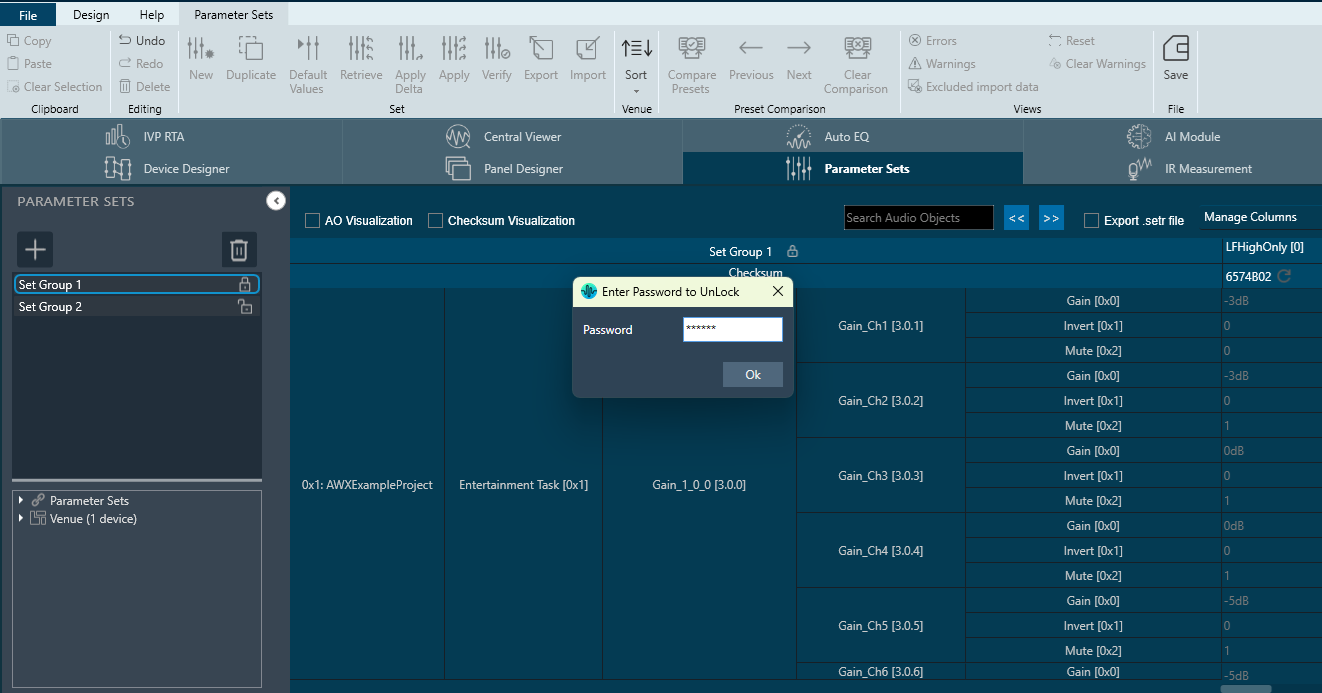

  • Prevent accidental or unauthorized edits in parameter set group data by protecting it with a password.

More details are available Parameter Set Components – User Guides
UX/UI Enhancements
  • Landing Page improvements to remove duplicates option, improved file menu example, Licensee Information, help, and about
  • Ability to export selected projects. The user can export multiple projects with this feature. More details are available here: Home Screen.
  • Improved error log information to Display Object name, wherever the object error is given, instead of giving the block ID
  • Avoided accidental movement, causing the user to perform unnecessary save actions.
Native Panels
  • Ability to apply color in the Control Mixer Panel.

  • Create a Reusable Native panel for a Generic AI object.
  • New Native Panel for Fader Matrix Object.
  • Allow import and export of LUT-Data into a .csv file.
  • Apply Offset in LUT only on selected cells
Performance Improvements
  • Open/Import project performance improvement
  • Open signal flow improved by 45%
Increase the limit of Audio Objects SFD Increasing the number of Audio Objects per core in signal flow.
Feedback loop enhancement Display Execution Order (Index)
Measurement Module
  • Inspection viewer Improvements-Display chart corresponding to selected step if the step is not completed or aborted chart will not display.
  • Validate to noise ratio of the channel measurement.
  • Make the calibration window movable instead of fixed.
Central Viewer Ability to remove browsing curves from the car in single selection mode/li>
IVP/RTA
  • Auto-populating entries in IVP Advanced Settings connections -Allow the user to auto-populate different lists on advanced settings.
  • Built-in Timer- auto capture timer in RTA allows the user to auto capture traces with a preconfigured time.
  • Ability to open RTA when SoundCard settings are incorrect.
  • [RTA][CV]-Text File Export improvements
    • Ability to export phase data
    • Included Project Name in the exported text file
  • [RTA] Multiplex / RMS ribbon required modes
